SIP Type (1-9W)
P-DUKE provides 1-9W SIP type DC to DC converter, with small size, low ripple noise, high efficiency, high operating temperature, built-in EMI filter ... and so on, We acquired UL / EN / IEC 60950-1, 60601-1, 62368-1 , EN50155 and other related safety certification to meet the customer industrial / medical / railway / IPC ….power application selection or customized products services.
|
|
Series
|
Output
Power
|
Input Range
(VDC)
|
Output Voltage
(VDC)
|
Isolation Voltage
|
Application
|
Descriptions
|
|
NEW
|

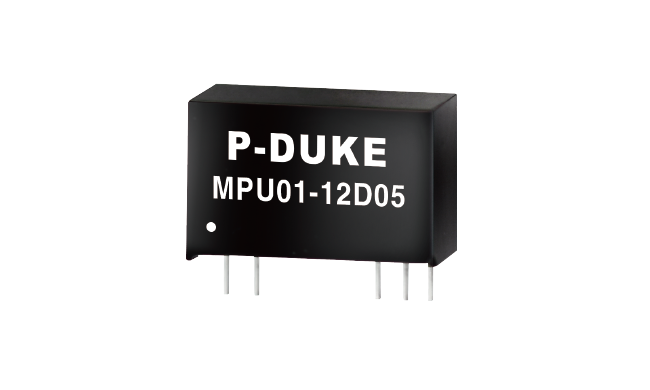

MPU01
|
1W
|
4.5~5.5,
9.6~14.4,
12~18,
19.2~28.8
|
3.3,
5,
12,
15,
±12,
±15,
±5
|
5000 VAC
|
Medical, Industry
|
0.77 x 0.39 x 0.49 INCH
|
|
NEW
|
EUR01
|
1W
|
2.9~3.6,
4.5~5.5,
10.8~13.2,
13.4~16.4,
21.6~26.4
|
3.3,
5,
9,
12,
15,
24
|
1600 VDC / 3000 VDC
|
Industry
|
SIP4
|
|
NEW
|
EDL02
|
2W
|
4.5~13.2,
9~18,
18~36,
36~75
|
3.3,
5,
9,
12,
15,
24,
±12,
±15,
±5
|
1600VDC
|
Industrial
|
SIP8
|
|
NEW
|
EDL02W
|
2W
|
4.5~18,
9~36,
18~75
|
3.3,
5,
9,
12,
15,
24,
±12,
±15,
±5
|
1600VDC
|
Industrial
|
SIP8
|
|
NEW
|
EDL03
|
3W
|
4.5~13.2,
9~18,
18~36,
36~75
|
3.3,
5,
9,
12,
15,
24,
±12,
±15,
±5
|
1600VDC
|
Industrial
|
SIP8
|
|
NEW
|
EDL03W
|
3W
|
4.5~18,
9~36,
18~75
|
3.3,
5,
9,
12,
15,
24,
±12,
±15,
±5
|
1600VDC
|
Industrial
|
SIP8
|
|
NEW
|
RDL03W
|
3W
|
9~36,
18~75,
43~160
|
3.3,
5,
9,
12,
15,
24,
±12,
±15,
±5
|
3000VDC
|
Railway, Industry
|
SIP8
|
|
NEW
|
RDL06W
|
6W
|
9~36,
18~75,
43~160
|
3.3,
5,
9,
12,
15,
24,
±12,
±15,
±5
|
3000VDC
|
Railway, Industry
|
SIP8
|
|
NEW
|
LDL03
|
3W
|
4.5~13.2,
9~18,
18~36,
36~75
|
3.3,
5,
9,
12,
15,
24,
±12,
±15,
±5
|
1600 VDC
|
Industrial
|
0.86 X 0.36 X 0.44 INCH
|
|
|
UDS01 / UDH01
|
1W
|
4.5~13.2,
9~18,
18~36,
36~75
|
3.3,
5,
9,
12,
15,
24,
±12,
±15,
±5
|
1600 VDC
|
|
0.47 X 0.44 X 0.31INCH; 0.47 X 0.30 X 0.43INCH
|
|
|
DU1P0
|
1W
|
4.5~5.5,
10.8~13.2,
13.5~16.5,
21.6~26.4
|
5,
12,
15,
± 12,
± 15,
± 5
|
1000VDC, 3000 VDC
|
|
0.77 X 0.24 X 0.40 INCH; Un-regulated
|
|
|
DUR01
|
1W
|
3~3.6,
4.5~5.5,
8.1~9.9,
10.8~13.2,
13.5~16.5,
21.6~26.4
|
3.3,
5,
9,
12,
15
|
1000 VDC
|
|
0.45 X 0.24 X 0.40 INCH; Un-regulated
|
|
|
UDS02 / UDH02
|
2W
|
4.5~13.2,
9~18,
18~36,
36~75
|
3.3,
5,
9,
12,
15,
24,
±12,
±15,
±5
|
1600 VDC
|
|
0.47 X 0.44 X 0.31INCH; 0.47 X 0.30 X 0.43INCH
|
|
|
PDL02
|
2W
|
4.5~9,
9~18,
18~36,
36~75
|
3.3,
5,
9,
12,
15,
±12 ,
±15 ,
±5
|
1600VDC, 3000 VDC
|
|
0.86 X 0.36 X 0.44 INCH
|
|
|
UDS03 / UDH03
|
3W
|
4.5~13.2,
9~18,
18~36,
36~75
|
3.3,
5,
9,
12,
15,
24,
±12,
±15,
±5
|
1600 VDC
|
|
0.47 X 0.44 X 0.31INCH; 0.47 X 0.30 X 0.43INCH
|
|
|
PDL03
|
3W
|
4.5~9,
9~18,
18~36,
36~75
|
5,
9,
12,
15,
±12 ,
±15 ,
±5
|
1600VDC, 3000 VDC
|
|
0.86 X 0.36 X 0.44 INCH
|
|
|
PDL03W
|
3W
|
4.5~18,
9~36,
18~75
|
5,
9,
12,
15,
±12 ,
±15 ,
±5
|
1600VDC, 3000 VDC
|
|
0.86 X 0.36 X 0.44 INCH
|
|
|
PDL06
|
6W
|
4.5~9,
9~18,
18~36,
36~75
|
3.3,
5,
9,
12,
15,
24,
±12,
±15,
±5
|
1600VDC, 3000 VDC
|
|
0.86 X 0.36 X 0.44 INCH
|
|
|
PDL06W
|
6W
|
9~36,
18~75
|
3.3,
5,
9,
12,
15,
24,
±12,
±15,
±5
|
1600VDC, 3000 VDC
|
|
0.86 X 0.36 X 0.44 INCH
|
|
|
PDL09
|
9W
|
9~18,
18~36,
36~75
|
3.3,
5,
9,
12,
15,
24,
±12,
±15,
±5
|
1600 VDC
|
|
0.86 X 0.36 X 0.44 INCH
|
|
|
PDL09W
|
9W
|
9~36,
18~75
|
3.3,
5,
9,
12,
15,
24,
±12,
±15,
±5
|
1600 VDC
|
|
0.86 X 0.36 X 0.44 INCH
|
|
