Model
|
Measurement
|
Nominal value
|
Accuracy
|
Supply voltage
|
Second. Nominal Signal
|
|
CD1000-T/SP7
CD series
|
Current
|
1500 A
|
3 %
|
External DC Bipolar 24 to 24 V
|
Instantaneous
Voltage 10 V
|
|
FRS2000-SH
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
2000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
DC RMS
Voltage 0-5V
|
|
HAX5000-S
HAX series
|
Current
|
5000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 4 V
|
|
FRS2500-SH
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
2500 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
DC RMS
Voltage 0-5V
|
|
HTC4000-S/SP2
HTC series
|
Current
|
4000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 10 V
|
|
FRS3000-SU
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
3000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous unidirectional
Voltage 0-5V
|
|
LF2010-S/SPA1
LF2010 series
|
Current
|
2300 A
|
0.3 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 460 mA
|
|
FRS1500-SBIH
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
1500 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous
Current 4-20mA
|
|
HAX1500-S/SP20
HAX series
|
Current
|
1500 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 4 V
|
|
LT4000-T/SP11
LT4000 series
|
Current
|
4000 A
|
0.5 %
|
External DC Bipolar 24 to 24 V
|
Instantaneous
Current 800 mA
|
|
FRS1500-SUI
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
1500 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous Unipolar
Current 4-20mA
|
|
HAX3000-S/SP20
HAX series
|
Current
|
3000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 4 V
|
|
FRS2000-SUIH
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
2000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous Unipolar
Current 4-20mA
|
|
HTC1500-S/SP4
HTC series
|
Current
|
1500 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 10 V
|
|
FRS2500-SUIH
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
2500 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous Unipolar
Current 4-20mA
|
|
LF2005-S/SP10
LF2005 series
|
Current
|
2000 A
|
0.3 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 400 mA
|
|
HAT 1500-S/SP200
HAT series
|
Current
|
1500 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 4 V
|
|
LT 4000-S/SP32
LT4000 series
|
Current
|
4000 A
|
0.5 %
|
External DC Bipolar 24 to 24 V
|
Instantaneous
Current 800 mA
|
|
FRS 1500-SUIH
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
1500 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous Unipolar
Current 4-20mA
|
|
HAX 3000-S/SP22
HAX series
|
Current
|
3000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 4 V
|
|
FRS 2000-S
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
2000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
DC RMS
Voltage 0-5V
|
|
HAX 4000-S
HAX series
|
Current
|
4000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 4 V
|
|
FRS 2500-SBI
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
2500 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous
Current 4-20mA
|
|
HTC 2500-S/SP4
HTC series
|
Current
|
2500 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 10 V
|
|
FRS 3000-SBIH
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
3000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous
Current 4-20mA
|
|
LF 2010-S/SP33
LF2010 series
|
Current
|
2000 A
|
0.3 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 500 mA
|
|
FRS 1500-S
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
1500 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
DC RMS
Voltage 0-5V
|
|
HAT 2184-T/SP17
HAT series
|
Current
|
2184 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 4 V
|
|
LT 4000-S/SP45
LT4000 series
|
Current
|
4400 A
|
0.2 %
|
External DC Bipolar 60 to 60 V
|
Instantaneous
Current 880 mA
|
|
FRS 2000-SBIH
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
2000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous
Current 4-20mA
|
|
HAX 4000-S/SP20
HAX series
|
Current
|
4000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 4 V
|
|
FRS 2500-SBIH
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
2500 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous
Current 4-20mA
|
|
HTC 3000-S/SP2
HTC series
|
Current
|
3000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 10 V
|
|
FRS 3000-SH
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
3000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
DC RMS
Voltage 0-5V
|
|
LF 2010-S/SP6
LF2010 series
|
Current
|
2000 A
|
0.3 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 500 mA
|
|
FRS 1500-SBIH
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
1500 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous
Current 4-20mA
|
|
HAX 1500-S/SP20
HAX series
|
Current
|
1500 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 4 V
|
|
LT 4000-T/SP11
LT4000 series
|
Current
|
4000 A
|
0.5 %
|
External DC Bipolar 24 to 24 V
|
Instantaneous
Current 800 mA
|
|
FRS 2000-SH
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
2000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
DC RMS
Voltage 0-5V
|
|
HAX 5000-S
HAX series
|
Current
|
5000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 4 V
|
|
HAX 2500-S/SP20
HAX series
|
Current
|
2500 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 4 V
|
|
LT 4000-T/SP37
LT4000 series
|
Current
|
4000 A
|
0.2 %
|
External DC Bipolar 24 to 24 V
|
Instantaneous
Current 800 mA
|
|
FRS 2000-SUH
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
2000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous unidirectional
Voltage 0-5V
|
|
HSTDR 1500-000
HSTDR series
|
Current
|
1500 A
|
2.75 %
|
External DC Unipolar 5 to 5 V
|
Instantaneous
Voltage 2 V
|
|
FRS 2500-SUH
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
2500 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous unidirectional
Voltage 0-5V
|
|

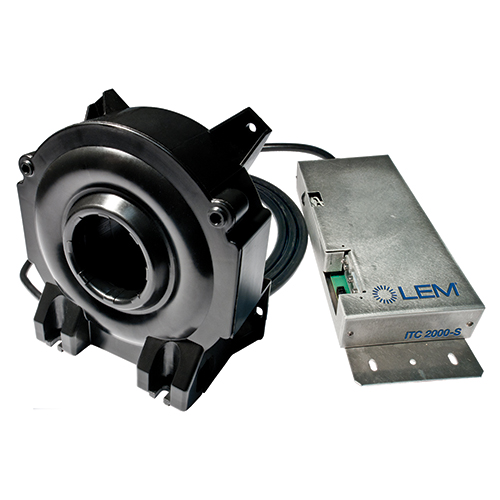

ITC 2000-S/SP3
ITC2000 series
|
Current
|
2000 A
|
0.05 %
|
External DC Bipolar 24 to 24 V
|
Instantaneous
Current 800 mA
|
|
HAT 1500-S/SP1
HAT series
|
Current
|
1500 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 4 V
|
|
LT 4000-S/SP22
LT4000 series
|
Current
|
4000 A
|
0.5 %
|
External DC Bipolar 24 to 24 V
|
Instantaneous
Current 800 mA
|
|
FRS 1500-SUH
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
1500 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous unidirectional
Voltage 0-5V
|
|
HAX 3000-S
HAX series
|
Current
|
3000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 4 V
|
|
HTC 4000-S/SP4
HTC series
|
Current
|
4000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 10 V
|
|
FRS 3000-SUH
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
3000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous unidirectional
Voltage 0-5V
|
|
LT 2000-S/SP45
LT4000 series
|
Current
|
2000 A
|
0.3 %
|
External DC Bipolar 24 to 24 V
|
Instantaneous
Current 400 mA
|
|
LT 4000-S/SP12
LT4000 series
|
Current
|
4000 A
|
0.5 %
|
External DC Bipolar 24 to 24 V
|
Instantaneous
Current 800 mA
|
|
FRS 1500-SU
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
1500 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous unidirectional
Voltage 0-5V
|
|
HAX 2500-S/SP20
HAX series
|
Current
|
2500 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 4 V
|
|
LT 4000-T/SP37
LT4000 series
|
Current
|
4000 A
|
0.2 %
|
External DC Bipolar 24 to 24 V
|
Instantaneous
Current 800 mA
|
|
FRS 2000-SUH
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
2000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous unidirectional
Voltage 0-5V
|
|
HSTDR 1500-000
HSTDR series
|
Current
|
1500 A
|
2.75 %
|
External DC Unipolar 5 to 5 V
|
Instantaneous
Voltage 2 V
|
|
FRS 2500-SUH
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
2500 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous unidirectional
Voltage 0-5V
|
|
HTC 1500-S/SP4
HTC series
|
Current
|
1500 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 10 V
|
|
FRS 2500-SUIH
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
2500 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous Unipolar
Current 4-20mA
|
|
LF 2005-S/SP10
LF2005 series
|
Current
|
2000 A
|
0.3 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 400 mA
|
|
HAT 1500-S/SP24
HAT series
|
Current
|
1500 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 4 V
|
|
LT 4000-S/SP43
LT4000 series
|
Current
|
4000 A
|
0.5 %
|
External DC Bipolar 24 to 24 V
|
Instantaneous
Current 1000 mA
|
|
FRS 1500-SUIH
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
1500 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous Unipolar
Current 4-20mA
|
|
HAX 3000-S/SP22
HAX series
|
Current
|
3000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 4 V
|
|
FRS 2500-S
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
2500 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
DC RMS
Voltage 0-5V
|
|
HTC 2000-S/SP2
HTC series
|
Current
|
2000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 10 V
|
|
FRS 3000-SBI
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
3000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous
Current 4-20mA
|
|
LF 2005-S/SP26
LF2005 series
|
Current
|
2000 A
|
0.4 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 500 mA
|
|
HSU00
HSU series
|
Current
|
2000 A
|
5 %
|
External DC Unipolar 5 to 5 V
|
Instantaneous
Voltage 0-5V
|
|
HSU01
HSU series
|
Current
|
2000 A
|
5 %
|
External DC Unipolar 5 to 5 V
|
Instantaneous
Voltage 0-5V
|
|
HSU03
HSU series
|
Current
|
2000 A
|
5 %
|
External DC Unipolar 5 to 5 V
|
Instantaneous
Voltage 0-5V
|
|
FL 12000-SDBIH200
FL OLCI (supersized Large) series
|
Current
|
12000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous
Current 4-20mA
|
|
FL 12000-SDUI200
FL OLCI (supersized Large) series
|
Current
|
12000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous Unipolar
Current 4-20mA
|
|
FL 12000-SDBIH300
FL OLCI (supersized Large) series
|
Current
|
12000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous
Current 4-20mA
|
|
FL 12000-SDUI300
FL OLCI (supersized Large) series
|
Current
|
12000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous Unipolar
Current 4-20mA
|
|
FL 12000-SDH200
FL OLCI (supersized Large) series
|
Current
|
12000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous
Voltage 0-5V
|
|
FL 12000-SDUIH200
FL OLCI (supersized Large) series
|
Current
|
12000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous Unipolar
Current 4-20mA
|
|
FL 12000-SDUIH300
FL OLCI (supersized Large) series
|
Current
|
12000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous Unipolar
Current 4-20mA
|
|
FL 12000-SDH300
FL OLCI (supersized Large) series
|
Current
|
12000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous
Voltage 0-5V
|
|
FL 28000-SDU200
FL OLCI (supersized Large) series
|
Current
|
12000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous Unipolar
Voltage 0-5V
|
|
FL 12000-SD200
FL OLCI (supersized Large) series
|
Current
|
12000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous
Voltage 0-5V
|
|
FL 12000-SDU200
FL OLCI (supersized Large) series
|
Current
|
12000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous Unipolar
Voltage 0-5V
|
|
FL 12000-SD300
FL OLCI (supersized Large) series
|
Current
|
12000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous
Voltage 0-5V
|
|
FL 12000-SDU300
FL OLCI (supersized Large) series
|
Current
|
12000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous Unipolar
Voltage 0-5V
|
|
FL 12000-SDBI200
FL OLCI (supersized Large) series
|
Current
|
12000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous
Current 4-20mA
|
|
FL 12000-SDUH200
FL OLCI (supersized Large) series
|
Current
|
12000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous Unipolar
Voltage 0-5V
|
|
FL 12000-SDBI300
FL OLCI (supersized Large) series
|
Current
|
12000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous
Current 4-20mA
|
|
FL 12000-SDU200
FL OLCI (supersized Large) series
|
Current
|
12000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous Unipolar
Voltage 0-5V
|
|
IN 1500-S
IN500/1000/1200 series
|
Current
|
1500 A
|
0.0018 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Current 1000 mA
|
|
SMU01
SMU series
|
Current
|
1500 A
|
2.75 %
|
External DC Unipolar 5 to 5 V
|
Instantaneous
Voltage 2 V
|
|
FRS 1500-SBI
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
1500 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous
Current 4-20mA
|
|
FRS 2000-SBI
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
2000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous
Current 4-20mA
|
|
FRS 3000-S
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
3000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
DC RMS
Voltage 0-5V
|
|
FRS 3000-SUI
FRS OLCI (Fast Rogoski & small design) series
|
Current
|
3000 A
|
0.65 %
|
External DC Unipolar 12 to 24 V
|
Instantaneous Unipolar
Current 4-20mA
|
|
HAX 3000-S/SP23
HAX series
|
Current
|
3000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 4 V
|
|
CAB-SF 1500-001
CAB1500S series
|
Current
|
1500 A
|
0.5 %
|
External DC Unipolar 8 to 16 V
|
Instantaneous
Other CAN.c
|
|
AI-P1A
AI-P1A series
|
Current
|
100 A, 200 A, 300 A, 400 A, 500 A, 600 A, 800 A, 1000 A, 1500 A, 2000 A, 4000 A, 5000 A
|
0.5 %
|
External DC Unipolar 16.8 to 31.2 V
|
Instantaneous
Current 1000 mA
|
|
LT 4000-S/SP35
LT4000 series
|
Current
|
4000 A
|
0.5 %
|
External DC Bipolar 24 to 24 V
|
Instantaneous
Current 800 mA
|
|
CAB-SF 1500-000
CAB1500S series
|
Current
|
1500 A
|
0.5 %
|
External DC Unipolar 8 to 16 V
|
Instantaneous
Other CAN.c
|
|
CAB-SF 1500-006
CAB1500S series
|
Current
|
1500 A
|
0.5 %
|
External DC Unipolar 8 to 16 V
|
Instantaneous
Other CAN.c
|
|
CAB 1500-001
CAB1500 series
|
Current
|
1500 A
|
0.5 %
|
External DC Unipolar 8 to 16 V
|
Instantaneous
Other CAN.c
|
|
CAB 1500-000
CAB1500 series
|
Current
|
1500 A
|
0.5 %
|
External DC Unipolar 8 to 16 V
|
Instantaneous
Other CAN.c
|
|
ITZ 6100-S FLEX ULTRASTAB
ITZ series
|
Current
|
6100 A
|
0.0005 %
|
External AC 100 to 240 V
|
Instantaneous
Current 2440 mA
|
|
ITC 4000-S/SP2
ITC4000 series
|
Current
|
4000 A
|
0.05 %
|
External DC Bipolar 24 to 24 V
|
Instantaneous
Current 1600 mA
|
|
HAH1BVW S/15
HAH1BVW series
|
Current
|
1500 A
|
2.75 %
|
External DC Unipolar 5 to 5 V
|
Instantaneous
Voltage 2.5 +/- 2 V
|
|
HAH1DRW 1500-S/SP5
HAH1DRW series
|
Current
|
1500 A
|
2.25 %
|
External DC Unipolar 5 to 5 V
|
Instantaneous
Voltage 2 V
|
|
HC16F 1500-S00
HC16F series
|
Current
|
1500 A
|
1.75 %
|
External AC 5 to 5 V
|
Instantaneous
Voltage 2.5 +/- 2 V
|
|
HC16F 1600-S00
HC16F series
|
Current
|
1600 A
|
1.75 %
|
External AC 5 to 5 V
|
Instantaneous
Voltage 2.5 +/- 2 V
|
|
HAH3DR 1500-S0A
HAH3DR S0A series
|
Current
|
1500 A
|
2.5 %
|
External DC Unipolar 5 to 5 V
|
Instantaneous
Voltage 2.5 +/- 2 V
|
|
IN 2000-SB/SP1 SORTIE TENSION 5V
IN2000 series
|
Current
|
2000 A
|
0.0075 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 5 V
|
|
IN 2000-SB SORTIE TENSION 10V
IN2000 series
|
Current
|
2000 A
|
0.0075 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 10 V
|
|
HAH1DRW 1500-S
HAH1DRW series
|
Current
|
1500 A
|
2.25 %
|
External DC Unipolar 5 to 5 V
|
Instantaneous
Voltage 2.5 +/- 2 V
|
|
AI-PMUL
AI-PMUL series
|
Current
|
100 A, 200 A, 300 A, 400 A, 500 A, 600 A, 800 A, 1000 A, 1500 A, 2000 A, 4000 A, 5000 A
|
0.5 %
|
External DC Unipolar 10 to 32 V
|
DC TRMS & Instantaneous
Other Multiple Current & Voltage
|
|
LF 2010-S/SP23
LF2010 series
|
Current
|
2000 A
|
0.3 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 400 mA
|
|
IN 2000-S
IN2000 series
|
Current
|
2000 A
|
0.0014 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Current 1000 mA
|
|
HAZ 10000-SBI
HAZ series
|
Current
|
10000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Current 20 mA
|
|
LF 2010-S
LF2010 series
|
Current
|
2000 A
|
0.3 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 400 mA
|
|
LF 2005-S/SP13
LF2005 series
|
Current
|
2000 A
|
0.3 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 400 mA
|
|
HAZ 4000-SB
HAZ series
|
Current
|
4000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 10 V
|
|
LT 2005-S/SP12
LT2005 series
|
Current
|
2000 A
|
0.3 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 400 mA
|
|
HTC 3000-S/SP4
HTC series
|
Current
|
3000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 10 V
|
|
LT 4000-S/SP34
LT4000 series
|
Current
|
4000 A
|
0.5 %
|
External DC Bipolar 24 to 24 V
|
Instantaneous
Current 800 mA
|
|
ITZ 2000-SBPR FLEX ULTRASTAB
ITZ series
|
Current
|
2000 A
|
0.0064 %
|
External AC 100 to 240 V
|
Instantaneous
Voltage 10 V
|
|
HAX 2000-S/SP19
HAX series
|
Current
|
2000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 4 V
|
|
LF 2005-S/SP23
LF2005 series
|
Current
|
2000 A
|
0.3 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 400 mA
|
|
HAZ 4000-SBI/SP1
HAZ series
|
Current
|
4000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Current 4-20mA
|
|
LT 2005-S/SP15
LT2005 series
|
Current
|
2000 A
|
0.3 %
|
External DC Bipolar 24 to 24 V
|
Instantaneous
Current 400 mA
|
|
HAZ 4000-SBI/SP1
HAZ series
|
Current
|
4000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Current 4-20mA
|
|
LT 2005-S/SP15
LT2005 series
|
Current
|
2000 A
|
0.3 %
|
External DC Bipolar 24 to 24 V
|
Instantaneous
Current 400 mA
|
|
ITC 2000-S/SP2
ITC2000 series
|
Current
|
2000 A
|
0.05 %
|
External DC Bipolar 24 to 24 V
|
Instantaneous
Current 800 mA
|
|
ITZ 2000-SPR FLEX ULTRASTAB
ITZ series
|
Current
|
2000 A
|
0.0004 %
|
External AC 100 to 240 V
|
Instantaneous
Current 1000 mA
|
|
HAX 2500-S
HAX series
|
Current
|
2500 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 4 V
|
|
LF 2005-S/SP3
LF2005 series
|
Current
|
2000 A
|
0.3 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 400 mA
|
|
HAZ 6000-SB
HAZ series
|
Current
|
6000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 10 V
|
|
LT 2005-S/SP2
LT2005 series
|
Current
|
2000 A
|
0.4 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 500 mA
|
|
ITC 4000-S
ITC4000 series
|
Current
|
4000 A
|
0.05 %
|
External DC Bipolar 24 to 24 V
|
Instantaneous
Current 1600 mA
|
|
ITZ 5000-S FLEX ULTRASTAB
ITZ series
|
Current
|
5000 A
|
0.0005 %
|
External AC 100 to 240 V
|
Instantaneous
Current 2000 mA
|
|
LT 2005-S/SP2
LT2005 series
|
Current
|
2000 A
|
0.4 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 500 mA
|
|
ITC 2000-S/SP2
ITC2000 series
|
Current
|
2000 A
|
0.05 %
|
External DC Bipolar 24 to 24 V
|
Instantaneous
Current 800 mA
|
|
ITZ 2000-SPR FLEX ULTRASTAB
ITZ series
|
Current
|
2000 A
|
0.0004 %
|
External AC 100 to 240 V
|
Instantaneous
Current 1000 mA
|
|
HAX 2500-S
HAX series
|
Current
|
2500 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 4 V
|
|
LF 2005-S/SP3
LF2005 series
|
Current
|
2000 A
|
0.3 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 400 mA
|
|
HAZ 6000-SBI
HAZ series
|
Current
|
6000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Current 20 mA
|
|
LT 2005-T
LT2005 series
|
Current
|
2000 A
|
0.3 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 400 mA
|
|
ITC 4000-S
ITC4000 series
|
Current
|
4000 A
|
0.05 %
|
External DC Bipolar 24 to 24 V
|
Instantaneous
Current 1600 mA
|
|
ITZ 5000-S FLEX ULTRASTAB
ITZ series
|
Current
|
5000 A
|
0.0005 %
|
External AC 100 to 240 V
|
Instantaneous
Current 2000 mA
|
|
HAZ 10000-SB
HAZ series
|
Current
|
10000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 10 V
|
|
LF 2005-S/SP8
LF2005 series
|
Current
|
2000 A
|
0.4 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 400 mA
|
|
HOP 1500-SB
HOP series
|
Current
|
1500 A
|
2 %
|
External DC Bipolar 12 to 15 V
|
Instantaneous
Voltage 4 V
|
|
LT 2005-T/SP2
LT2005 series
|
Current
|
2000 A
|
0.4 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 500 mA
|
|
ITL 4000-S
ITL4000 series
|
Current
|
4000 A
|
0.06 %
|
External DC Bipolar 24 to 24 V
|
Instantaneous
Current 1600 mA
|
|
ITZ 5000-SB FLEX ULTRASTAB
ITZ series
|
Current
|
5000 A
|
0.0064 %
|
External AC 100 to 240 V
|
Instantaneous
Voltage 10 V
|
|
HAZ 10000-SBI
HAZ series
|
Current
|
10000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Current 20 mA
|
|
LF 2010-S
LF2010 series
|
Current
|
2000 A
|
0.3 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 400 mA
|
|
HAZ 10000-SBI/SP1
HAZ series
|
Current
|
10000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Current 4-20mA
|
|
LF 2010-S/SP1
LF2010 series
|
Current
|
2000 A
|
0.3 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 400 mA
|
|
HOP 2000-SB
HOP series
|
Current
|
2000 A
|
2 %
|
External DC Bipolar 12 to 15 V
|
Instantaneous
Voltage 4 V
|
|
HAX 2500-S
HAX series
|
Current
|
2500 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 4 V
|
|
LF 2005-S/SP3
LF2005 series
|
Current
|
2000 A
|
0.3 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 400 mA
|
|
HAZ 6000-SB
HAZ series
|
Current
|
6000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 10 V
|
|
LT 2005-S/SP2
LT2005 series
|
Current
|
2000 A
|
0.4 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 500 mA
|
|
HAZ 6000-SBI
HAZ series
|
Current
|
6000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Current 20 mA
|
|
LT 2005-T
LT2005 series
|
Current
|
2000 A
|
0.3 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 400 mA
|
|
ITC 4000-S
ITC4000 series
|
Current
|
4000 A
|
0.05 %
|
External DC Bipolar 24 to 24 V
|
Instantaneous
Current 1600 mA
|
|
ITZ 5000-S FLEX ULTRASTAB
ITZ series
|
Current
|
5000 A
|
0.0005 %
|
External AC 100 to 240 V
|
Instantaneous
Current 2000 mA
|
|
HAZ 10000-SB
HAZ series
|
Current
|
10000 A
|
1 %
|
External DC Bipolar 15 to 15 V
|
Instantaneous
Voltage 10 V
|
|
LF 2005-S/SP8
LF2005 series
|
Current
|
2000 A
|
0.4 %
|
External DC Bipolar 15 to 24 V
|
Instantaneous
Current 400 mA
|
|
AHR 1500 B10
AHR series
|
Current
|
1500 A
|
1 %
|
External DC Unipolar 20 to 50 V
|
DC TRMS
Voltage 0-10V
|
|
AHR 1500 B420
AHR series
|
Current
|
1500 A
|
1 %
|
External DC Unipolar 20 to 50 V
|
DC TRMS
Current 4-20mA
|
|
AHR 2000 B10
AHR series
|
Current
|
2000 A
|
1 %
|
External DC Unipolar 20 to 50 V
|
DC TRMS
Voltage 0-10V
|
|
AHR 2000 B420
AHR series
|
Current
|
2000 A
|
1 %
|
External DC Unipolar 20 to 50 V
|
DC TRMS
Current 4-20mA
|
|
AHR 2000 B5
AHR series
|
Current
|
2000 A
|
1 %
|
External DC Unipolar 20 to 50 V
|
DC TRMS
Voltage 0-5V
|
|
AKR 2000 C420L J
AKR series
|
Current
|
1000 A, 1333 A, 2000 A
|
1 %
|
Loop Powered 24 to 24 V
|
DC TRMS
Current 4-20mA
|
您的当前位置：
